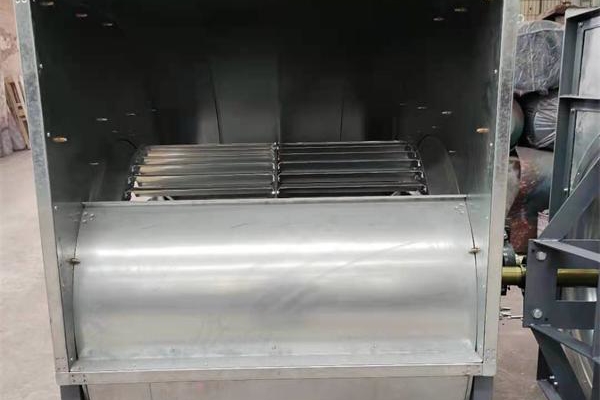

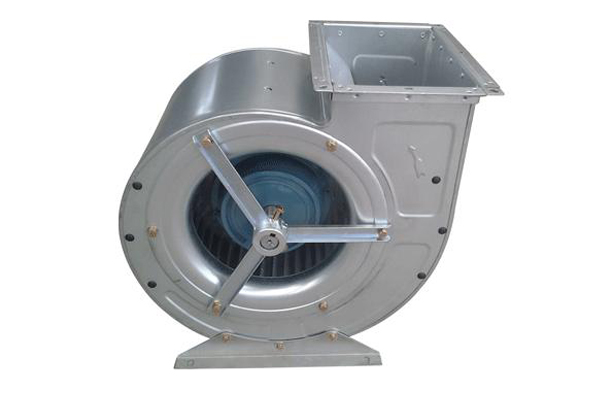

KKF型空調離心通風機

主要參數:

機  號:450#~1600#

風  量:3321~270180m3/h

全  壓:186~2471Pa

空調風機


結構特征:

1、本風機制成單吸入,傳動方式為C式,機號有:№450、500、560、630、710、800、900、1000、1120、1250、1400、1600等十二個機號。

2、 本型號風機具有效率高、噪聲低(在相同流量、轉速下比T4-72低4-7dB,比4-79低5-8dB)、風量大、曲線平坦等優點,零部件易拆卸、維修十分方便,皮帶輪可左右調向使用。

3、為方便用戶安裝、調試,可同時供應鋼結構的整體支架。


空調離心通風機


技術參數

機號
NO
轉速
(r/min)
流量
(m3/h)
全壓
(N/m2)
噪聲
dB(A)
電動機
(KW-P)
主軸帶輪電機帶輪皮帶長度
電機
導軌
代號
風機
重量
(KG)
代號代號
4502270
9561
11234
12907
14580
16253
17926
19599
2069
2020
1893
1746
1569
1422
1206
86
Y160M1
11-2
40-B4-25042-B4-1952413SHT-2167
4501960
8255
9700
11144
12589
14033
15478
16922
1542
1506
1411
1302
1170
1060
899
84
Y132S2
7.5-2
40-A4-25038-A4-1652240SHT-1167
4501775
7476
8784
10092
11401
12709
14017
15325
1265
1235
1157
1068
959
869
737
81
Y132S1
5.5-2
40-A4-25038-A4-1502240SHT-1167
4501440
6065
4126
8188
9248
10310
11372
12433
833
813
762
703
631
572
485
76
Y112M
4-4
40-A4-25028-A4-2452500SHT-1167
4501200
5054
5939
6823
7707
8592
9476
10361
578
564
529
488
438
397
337
72
Y100L1
2.2-4
40-A4-25028-A4-2102500SHT-1167
4501000
4212
4949
5686
6423
7160
7897
8634
401
392
367
339
304
276
234
68
Y100L
1.5-6
40-A4-25028-A4-2652500SHT-1167
5001985
11468
13475
15482
17489
19495
21502
23509
1953
1907
1787
1648
1481
1342
1138
86
Y160M1
11-2
40-B4-25042-B4-1652540SHT-2210
5001700
9821
11539
13259
14977
16696
18414
20132
1431
1398
1309
1207
1086
984
834
83
Y132S2
7.5-2
40-B4-25038-B4-1452540SHT-1210
5001410
8146
9571
10997
12423
13847
15273
16699
985
962
901
831
747
677
574
80
Y132S
5.5-4
45-A4-25038-A4-2452540SHT-1210
5001350
7799
9164
10529
11894
13258
14632
15988
903
882
826
762
685
620
526
78
Y112M
4-4
45-A4-25028-A4-2352540SHT-1210
5001200
6932
8146
9359
10572
11785
12998
14211
714
696
653
602
541
490
415
76
Y100L1
3-4
45-A4-25028-A4-2102540SHT-1210
5001050
6065
7172
8189
9250
10311
11373
12434
546
532
499
460
414
375
317
73
Y100L1
2.2-4
45-A4-25028-A4-1802540SHT-1210
5601800
14610
17167
19724
22280
24836
27393
29950
2014
1967
1843
1699
1527
1384
1173
87
Y160L
15-4
55-C4-25042-C4-3052800SHT-2280
5601600
12986
15259
17532
19804
22076
24349
26622
1591
1554
1456
1342
1206
1093
926
84
Y160M
11-4
55-B4-25042-B4-2702800SHT-2280
5601400
11363
13352
15340
17328
19316
21305
23294
1218
1189
1115
1027
923
837
709
81
Y132M
7.5-6
55-B4-25038-B4-2402768SHT-1280
5601200
9739
11444
13148
14852
16556
18261
19966
894
874
819
755
678
615
520
78
Y132S
5.5-4
55-A4-25038-A4-2052768SHT-1280
5601000
8116
9537
10957
12377
13797
15217
16638
621
606
568
524
470
427
361
73
Y132S
3-6
55--A4-25038-A4-2602768SHT-1280
560850


6899
8106
9314
10521
11728
12935
14143

448
438
410
378
339
308
261
71
Y100L
1.5-6
55-A4-25038-A4-2252768SHT-1280
6301500
17336
20369
23402
26436
29469
32502
35537
1770
1728
1620
1493
1342
1216
1032
88
Y160L
15-4
60-C4-25042-C4-2552972SHT-2320
6301380
15948
18739
21529
24321
27111
29900
32693
1498
1463
1370
126
1136
1029
873
86
Y160M
11-4
60-B4-25042-B4-2302972SHT-2320
6301300
15024
17653
20282
22911
25540
28169
30798
1329
1298
1216
1122
1008
966
775
84
Y160M
11-4
60-B4-25042-B4-2302972SHT-2320
6301200
13869
16259
18722
21148
23575
26002
28429
1133
1106
1036
956
859
778
660
83
Y132M
7.5-4
60-B4-25038-B4-2102845SHT-1320
6301015
11730
13782
15835
17887
19940
21993
24046
810
791
741
683
641
556
472
79
Y132S
5.5-4
60-B3-25038-B3-1752845SHT-1320
630880
10169
11948
13728
15507
17287
19067
20847
608
594
556
513
481
417
354
76
Y112M
4-4
60-B3-25028-B3-1502845SHT-1320
7101380
28065
31213
34225
37236
40249
43672
46547
1855
1764
1688
1616
1504
1350
1243
89
Y180L
22-4
60-C4-28048-C4-2603276SHT-2420
7101200
24403
27142
29760
32379
34999
37980
40475
1402
1335
1276
1222
1136
1025
935
87
Y160L
15-4
60-C4-28042-C4-2303276SHT-2420
7101000
20336
22618
24801
26983
29166
31646
33729
974
926
886
849
789
712
652
83
Y160M
11-4
60-B4-28042-B4-1903276SHT-2420
710910
18506
20582
22569
24554
26541
28798
30694
806
767
735
703
653
590
540
80
Y132M
7.5-4
60-B4-28038-B4-1753150SHT-1420
710800
16269
18094
19841
21586
2333
25317
26984
623
593
568
543
505
456
418
77
Y132S
5.5-4
60-B4-28038-B4-1553150SHT-1420
8001275
30171
35451
40731
46010
51290
56570
61849
2061
2013
1886
1740
1564
1416
1202
90
Y200L
30-4
70-C4-35055-C4-3003734SHT-3580
8001125
26621
31280
35939
30597
45255
49915
54572
1604
1567
1468
1354
1217
1102
935
88
Y180L
22-4
70-C4-35048-C4-2653734SHT-2580
800975
23071
27109
31147
35184
39221
43259
47292
1205
1177
1102
1017
914
828
702
85
Y160
15-4
70-C4-35042-C4-2303550SHT-2580
800825
19522
22938
26355
29771
33187
36604
40019
862
842
789
728
654
592
503
81
Y160M
11-4
70-C4-35042-C4-2003550SHT-2580
800720
17.37
20018
23000
25981
28963
31945
34925
656
641
600
554
498
450
383
78
Y132M
7.5-4
70-B4-35038-B4-1753550SHT-1580
9001135
28242
44935
51627
58320
65012
71705
78397
2062
2018
1891
1740
1567
1418
1203
91
Y225S
37-4
80-C4-35060-C4-2654000SHT-3740
9001010
34030
39986
45941
51897
57852
63807
69762
1632
1597
1497
1377
1240
1122
952
89
Y200L
30-4
80-C4-35055-C4-2404000SHT-3740
900890
29987
35235
40482
45730
50978
56226
61499
1168
1240
1162
1069
963
871
739
86
Y180L
22-4
80-C4-35048-C4-2104000SHT-2740
900740
24933
29296
33659
38023
42386
46750
51113
876
857
803
739
666
602
511
82
Y160
11-6
80-C4-35042-C4-2654000SHT-2740
900600
20215
23753
27291
30829
34367
37905
41442
575
563
527
485
437
395
335
78
Y160L
7.5-8
80-C4-35042-C4-2904000SHT-2740
10001000
57276
63703
69849
75995
82143
89128
94996
1946
1847
1775
1689
1579
1420
1298
92
Y280S
45-6
90-D4-37075-D4-3804597SHT-4990
1000895
51260
57013
62515
68016
73518
79769
85020
1559
1480
1422
1353
1265
1138
1040
89
Y250M
37-6
90-D4-37065-D4-3404597SHT-4990
1000790
45248
50325
55181
60037
64893
70411
75046
981
932
892
853
794
716
657
87
Y225M
30-6
90-C4-37060-C4-3004500SHT-3990
1000710
40666
45229
49593
53957
58322
63281
67447
981
932
892
853
794
716
657
85
Y200L2
22-6
90-C4-37055-C4-2704500SHT-3990
1000620
35511
39496
43306
47111
50929
55259
58897
750
706
683
650
606
548
504
82
Y200L
15-8
90-C4-37055-C4-3204500SHT-3990
1120900
58065
68225
78387
88548
98709
108870
119032
1982
1940
1818
1683
1506
1363
1156
92
Y280M
55-6
90-D5-37075-D5-3405000SHT-41360
1120810
52258
61402
70548
79693
88838
97983
107128
1605
1571
1472
1355
1219
1104
936
90
Y280S
45-6
90-D4-37075-D4-3055000SHT-41360
1120720
46452
54580
62709
70838
78843
87096
95225
1268
1241
1163
1070
936
872
739
88
Y250M
30-8
90-D4-37065-D4-3555000SHT-41360
1120620
39742
46696
53651
60606
67561
74561
81470
928
909
851
783
705
638
541
85
Y225M
22-8
90-C4-37060-C4-3055000SHT-31360
1120540
34614
40670
46728
52785
58843
64940
70958
703
689
645
594
534
484
410
81
Y200L
15-8
90-C4-37055-C4-3705000SHT-31360
1250820
73545
86416
99286
112157
125027
137898
150768
2050
2006
1880
1730
1557
1409
1196
92
Y315M1
75-8
100-D6-43080-D6-4655690SHT-51725
1250725
65024
76404
87783
99163
110542
121992
133300
1602
1568
1469
1352
1217
1099
934
90
Y315S
55-8
100-D6-43080-D6-4205600SHT-41725
1250650
58297
68500
78702
88904
99106
109309
119510
1287
1260
1180
1086
978
883
750
88
Y280S
37-8
100-D5-37075-D5-3205600SHT-41725
1250560
50225
59015
67805
76595
85384
94174
102963
956
935
876
806
726
657
557
86
Y250M
30-8
100-C4-37065-C4-2855600SHT-41725
1250500
44843
52691
60540
68388
76235
84083
91931
762
745
698
642
578
524
444
83
Y225S
18.5-8
100-C4-37060-C4-2505600SHT-31725
1400800
100804
118446
136086
153725
171369
189010
206651
2448
2394
2244
2065
1857
1681
1429
96
Y315L2
110-8
100-D7-40080-D7-4306600SHT-51997
1400700
90000
105166
120333
133500
150666
165833
181000
1892
1882
1794
1686
1490
1323
1157
92
Y315L1
90-8
100-D6-40080-D6-3806527SHT-51997
1400650
83571
97654
111737
125821
139904
153987
168071
1631
1623
1547
1453
1285
1140
998
90
Y315M1
75-8
100-D5-40080-D4-3506527SHT-51997
1400560
72000
84132
96266
108400
120532
132666
144800
1210
1204
1148
1079
953
846
740
89
Y280M
45-8
100-C5-40075-C5-3006378SHT-41997
1400490
63000
73616
84233
94850
105466
110830
126700
927
922
879
826
730
648
567
86
Y250M
30-8
100-C5-40065-C5-2656378SHT-41997
1400440
56571
66104
75638
85171
94704
104238
113771
748
744
709
666
589
522
457
84
Y225M
22-8
100-C5-40065-C5-2406378SHT-31997
1600700
134344
156982
179622
202262
224900
247540
270180
2471
2458
2343
2202
1946
1728
1511
97
Y355M2
160-8
100-D7-40095-D7-3756807SHT-62360
1600650
115837
145769
166791
187815
208835
229858
250881
2130
2090
2020
1898
1677
1489
1362
94
Y355M2
132-8
100-D6-40095-D6-3506807SHT-62360
1600560
99789
125585
143696
161809
179919
198031
216143
1580
1572
1499
1408
1244
1105
1010
90
Y315M
75-8
100-D5-40080-D5-3006807SHT-52360
1600490
87323
109886
125734
141582
157429
173277
189125
1209
1203
1147
1078
952
846
773
88
Y315S
55-8
100-C7-40080-C4-2656807SHT-52360
1600440
78412
98675
112904
127134
141365
155595
169826
975
970
920
869
768
682
623
83
Y280M
45-8
100-DC7-40075-D7-2406807SHT-42360

應  用:

KKF型空調離心通風機 主要用于工廠和大型建筑內通風換氣,尤其適用于空調凈化設備的通風系統配套。

關鍵詞
